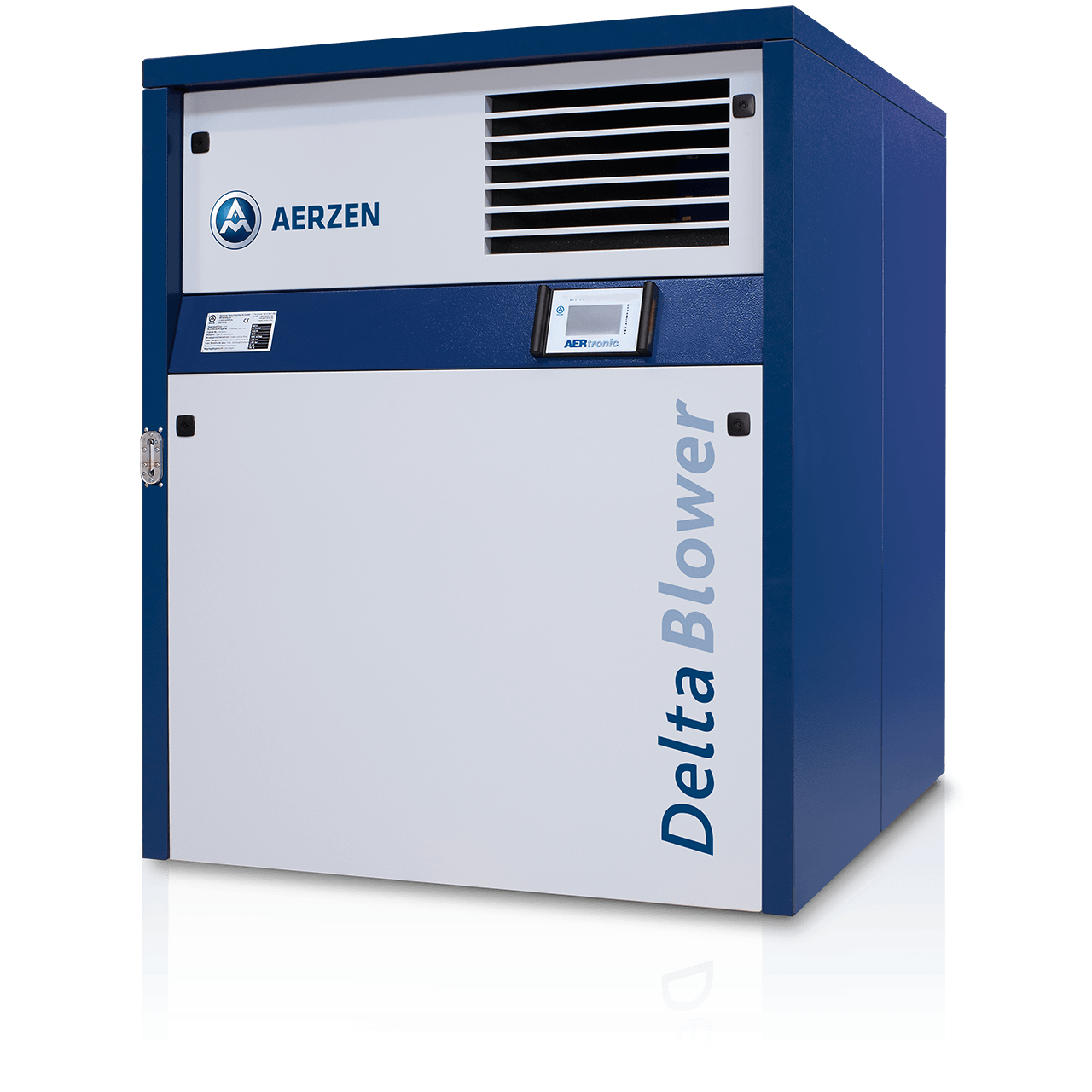

BLOWER UNIT POSITIVE PRESSURE GM 60 S-G5
GM 60 S-G5 TECHNICAL INFO
| TYPE OF TECHNOLOGY | POSITIVE DISPLACEMENT BLOWERS |
| SERIES | BLOWER UNITS DELTA BLOWER GENERATION 5 |
| DESIGN | POSITIVE PRESSURE (18) |
| MEDIUM | AIR, NEUTRAL GASES |
| CONVEYING | OIL-FREE |
PERFORMANCE DATA
| PRESSURE DIFFERENCE, mbar | 1000 |
| VOLUME FLOW, m3/h | 3540 |
| MOTOR POWER, kw | 132 |
| SOUND PRESSURE, max. db(A) | 78 |
Sound pressure level without blow-off noise, with acoustic enclosure.
DIMENSIONS AND WEIGHTS
| WIDTH (A), mm | 1700 |
| DEPTH (B), mm | 2055 |
| HEIGHT (C), mm | 2111 |
| NOMINAL SIZE | DN 200 |
| WEIGHT, kg | 1605 |
Performance data not binding! Subject to technical modifications!
Weight approx. kg without motor and belt drive.
Dimensions and weights including acoustic enclosure.
